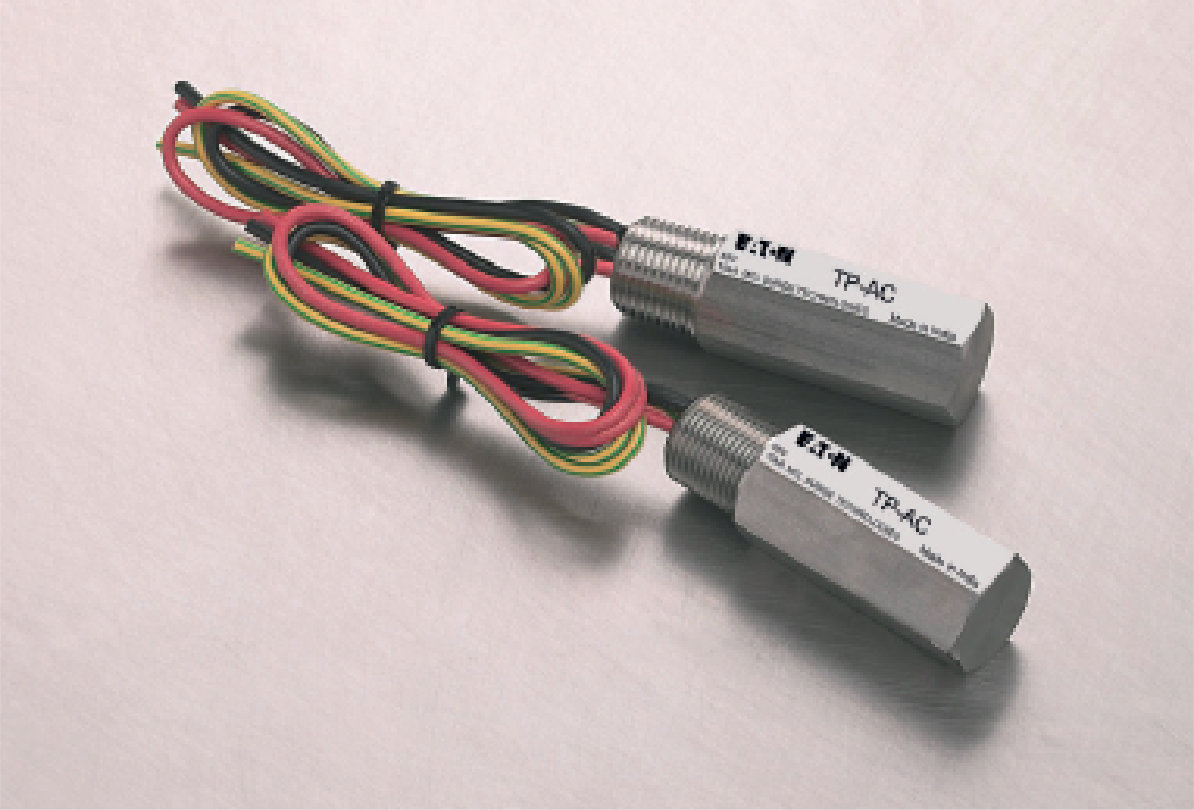

TP-AC range

The TP-AC range of surge protection devices uniquely provides a level of protection for AC powered, field -mounted transmitters that is far in excess of the optional transient protection facilities available from the transmitter manufacturers - and achieved without any additional wiring modifications or costly additions.

The TP protection network consists of high power, solid state electronics and a gas-filled discharge tube (GDT) capable of diverting 20kA impulses. The whole unit is encased in ANSI 316 stainless steel housing, threaded for attachment in conduit entries used on process transmitters. Versions are available with ½” NPT threaded entries.

• Corrosion resistant
• Protects AC power and signal line • 120V & 240V
• Models for Foundation fieldbus™ 4-20mA and Profibus DP
• Parallel connection avoids resistance in loop
• Easy and direct mounting – screws into spare conduit entry
• 10 year product warranty
