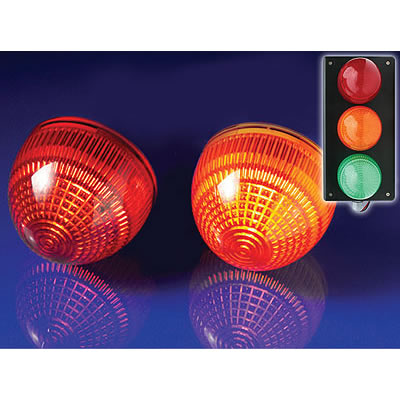

DA180 Series Intrinsically Safe Giant LED Clusters

The DA180, having a 66mm diameter lens, provides extremely clear visual indication of process control conditions from a distance and from the side. Lenses are available in six super-bright colours and feature an integral current regulator to limit the current to 20mA. This ensures that all colours are matched to obtain consistent brightness across the range. Up to two LED Clusters can be driven from a single 11C power source. The lamps are designed to provide a minimum of 100,000 hours of service life.

The DA180 Giant LED Clusters are ATEX Certified to EX11 2G, EEx ia IIC T4 and are suitable for zones 1 and 2. When used in hazardous areas, the LED Clusters must be powered through suitable intrinsically safe Isolators or Barriers.

The LED Clusters can be supplied as loose parts or pre-mounted in a stainless steel or polycarbonate IP65 rated box ready for immediate installation on site.
