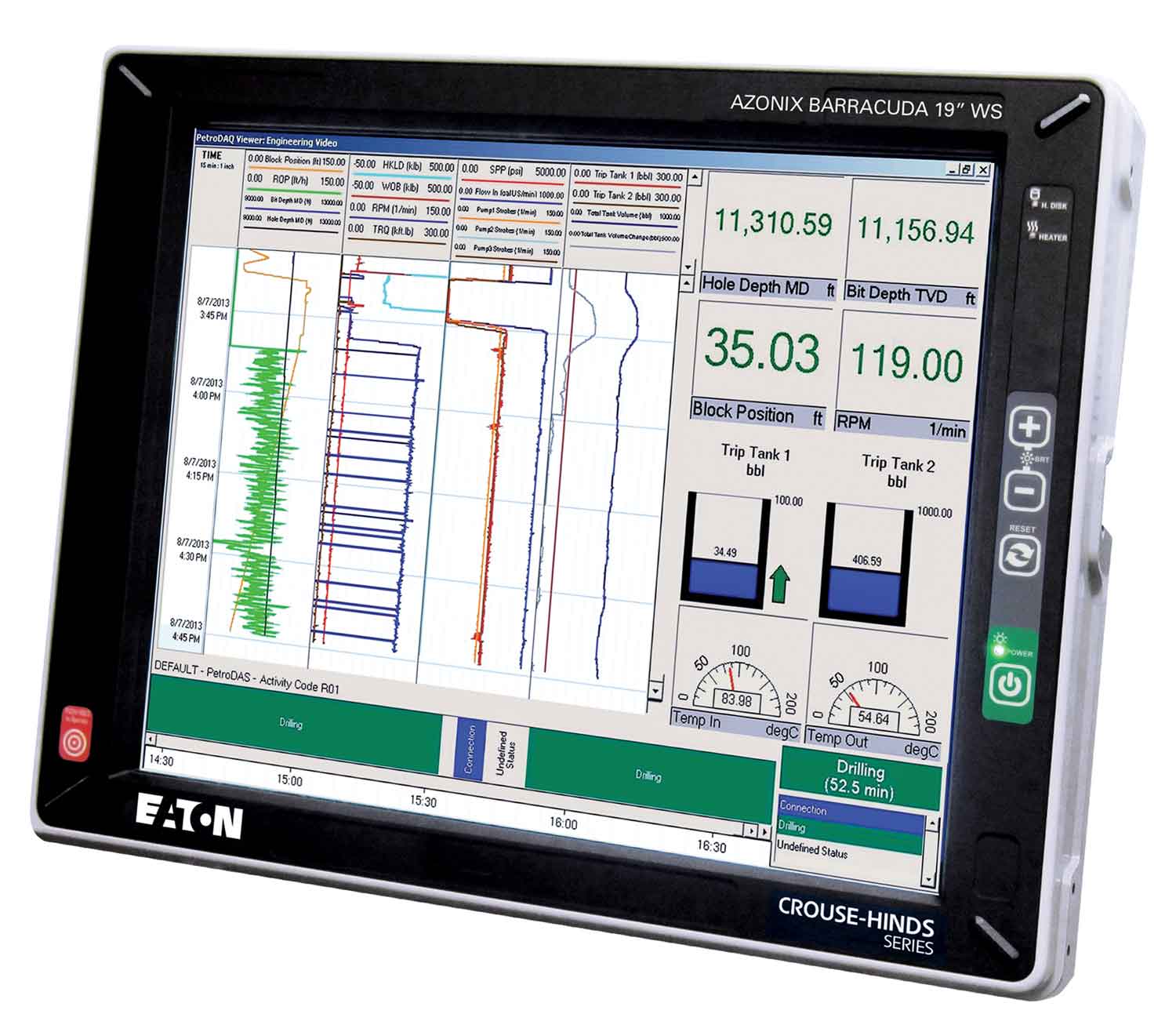

NEW Barracuda 19 Workstation

Welcome to the NEXT GENERATION of ruggedised workstation...

The next generation Azonix Barracuda workstation offers enhanced features for control and visualisation in harsh and hazardous environments. With its ruggedised packaging, increased processing power and low power LED backlit display, the Azonix Barracuda is built to take on the challenges of today’s oil and gas industry and is certified for installation across the globe. Workstations and displays used in the oil and gas industry need to be transportable and flexible to mount in a variety of ways. With the Azonix Barracuda, customers have the versatility to configure and mount an array of units close together, providing access to multiple sources of information at one time.

The Azonix Barracuda 19 WS can be utilized in rig floor applications such as MWD / LWD, mudlogging or well stimulation in oil and gas operations where a display or workstation must be able to withstand harsh shock and vibration and meet hazardous area certification. The system’s small footprint and VESA hole pattern allows for easy mounting in spaceconstrained work areas, making it equally suitable for use in machine automation environments where a standalone system must be mountable to various surfaces, from a standard pedestal to a boom,pole or custom panel mounting.

The Barracuda Gen 2.0 standard system features includes:

• Standard Configuration: Intel® Mobile B810 or Optional Intel Core 2 i7 2.5 GHz processor
• Built-in high-gain wireless LAN
• Network-ready for Ethernet -- twisted pair, coax or fiber optic so you can "plug and play" within a variety of standard LAN and WAN cabling options
• Rugged and die-cast aluminium enclosure
• NEMA 4 and IP66 rated for superior resistance to dust, dirt and liquids
• 19" LCD TFT, flat panel, active-matrix display with LED backlight
• Solid glass projected capacitive touchscreen
• Sunlight-readable LCD
• -40° C low-temperature option to +60° C operating temperature
• Rugged shock mounting resists vibration and shock while minimizing downtime and maintenance - Mil-STD-810G
• Locking military connectors standard
• Easy maintenance -- Mean time to repair (MTTR) for in-place board/device swaps is under 15 minutes
• Exceptional EMI/RFI resistance
• Backward compatible to previous generation Barracuda
• Windows 7® - compatible, numerous Application Program Interfaces (APIs) and software options
• Removable storage media (CF card or HDD)
• AC or DC sealed power supply
• System Memory - up to 8GB DRAM
• IECEx Zone2 / ATEX Zone 2 / AEx C1 Zone 2 approvals
